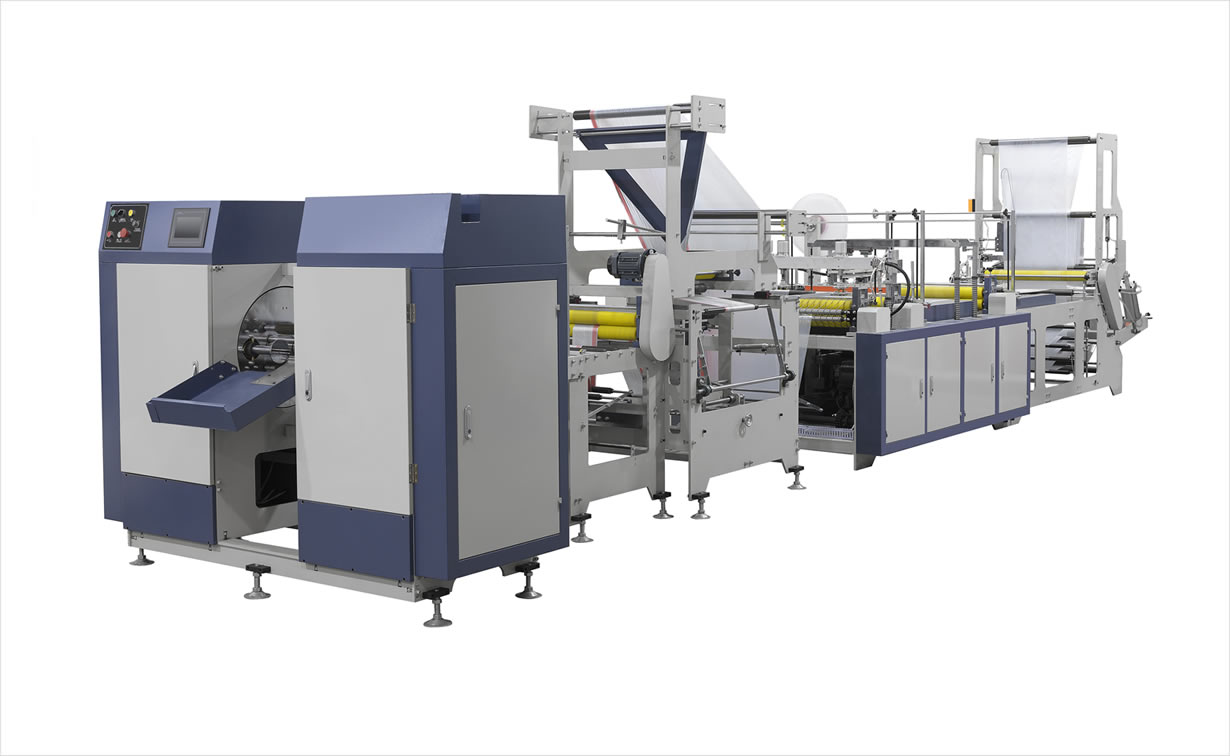

OJCS-800/1000 fully automatic coreless continuous winding rope garbage bag making machine

DATA：2022/1/7 Publisher: Oujie Machinery



Performance and features:

This equipment is specialized for producing continuous winding rope bags, using dual servo motors to control feeding, with fast bag making speed and simple adjustment. The non stretch hot seam makes the bag more secure, and automatic roll changing can save labor and greatly improve efficiency.

Main technical parameters:


  Machine model
   OJCS-800
   OJCS-1000
  Bag width/depth
   400-700mm
   500-700mm
  Bag length
   300-1000mm
   500-1000mm
  Machine speed
   50-160pcs/min   50-160pcs/min
  Bag thickness
   HDPE 0.0Q7-0Q2mn LDPE:0.02-  0.05mm
   HDPE 0.007-002mn LDPE:0.02-0.05mm
  Temperature control range
   5 Zone
   5 Zone
  Total power
  18kw
   18kw
  Machine weight
   2500kg   2500kg
  Machine dimensions
   10000x2200x1900mm(L*W*H)   10000x2200x1900mm(L*W*H)
