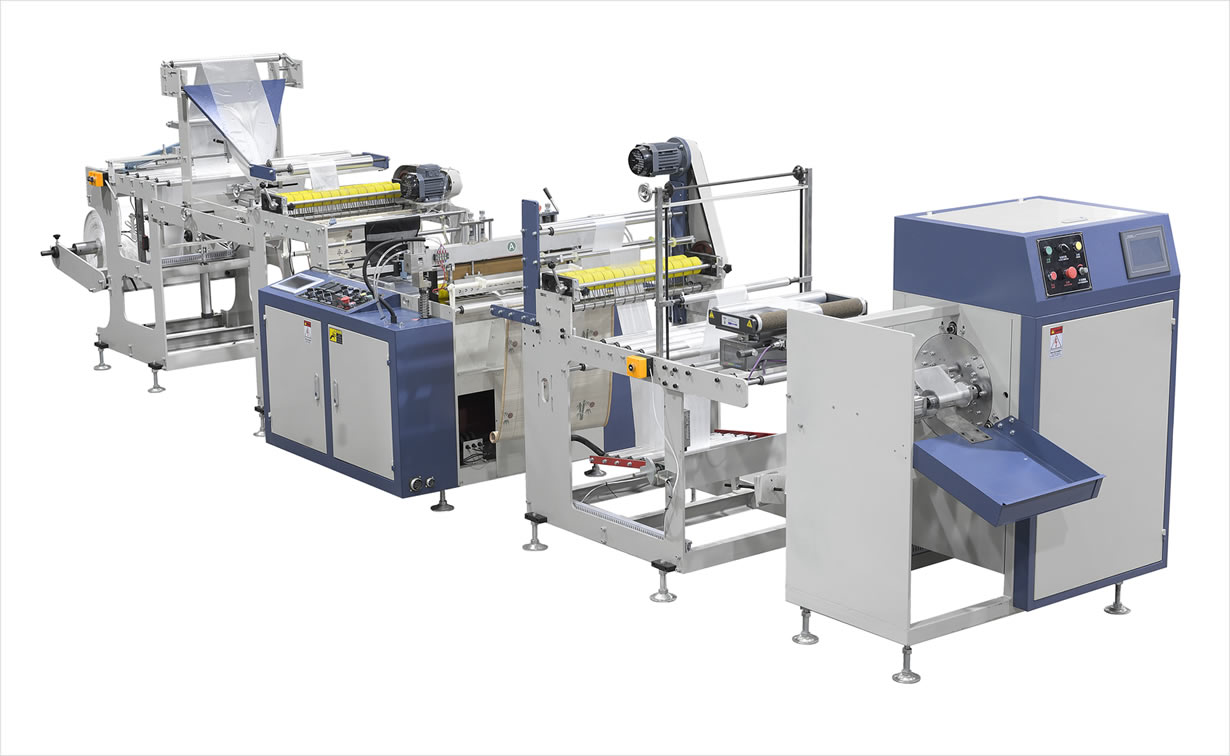

OJZA-500 fully automatic coreless folding flat mouth garbage bag making machine

DATA：2022/2/18 Publisher: Oujie Machinery



Performance and features:

1.Computer automatic control, automatic counting and adjustable counting alarm, high efficiency, saving manpower and time;

2.From film roll to finished bag, it is fully automated and completed in one go;

3.Domestic servo motor with fixed length, photoelectric tracking, accurate and stable, feeding adopts photoelectric control;
4.Adopting a hot cutting device and an intelligent temperature control system to ensure a firm and smooth sealing of the bag opening;
5.The host adopts a frequency converter to control speed regulation;
6.Material feeding is controlled by a frequency converter.

Main technical parameters:

  Machine model
   OJZA-500
  Machine speed
   60-200pcs/min
  Maximum linear velocity
   100m/min
  Bag length
   100-1000mm
  Bag-making width
   80-200mm
  Bag thickness
   0.005-0015mm
  Sealing method
   Folding flat mouth garbage bag
  Temperature control range
   2 Zone
  Heating total power
   4kw
  Total power
   15kw
  Machine weight   1400kg
  Machine dimensions
   6200x1200x1800mm(L*W*H)
